Hint
You can run this notebook in a live session with
.
Download#
Downloading products is after searching one of the most important features of eodag. This page describes the different methods available to download products and the parameters that these methods accept.
Warning
Downloading products from a provider whose storage is based on AWS may incur some cost.
Setup#
Results obtained from PEPS after a search of Sentinel 2 Level-1C products over France in March 2021 will be loaded in a SearchResult. But first, the credentials need to be set in order to be able to download anything.
[1]:
import os
# os.environ["EODAG__PEPS__AUTH__CREDENTIALS__USERNAME"] = "PLEASE_CHANGE_ME"
# os.environ["EODAG__PEPS__AUTH__CREDENTIALS__PASSWORD"] = "PLEASE_CHANGE_ME"
A workspace directory is created to store the downloaded products.
[2]:
workspace = 'eodag_workspace_download'
if not os.path.isdir(workspace):
os.mkdir(workspace)
By default eodag saves products in the directory set by outputs_prefix which is by default the system temporary folder (/tmp on Linux) and quicklooks in a quicklooks subfolder of outputs_prefix (tmp/quicklooks on Linux). To make them easier to use, eodag even stores them in a standardized output tree, regardless of whether the products are stored in a file, folder or archive to be extracted (see below). The path of this tree is defined as {outputs_prefix}/{title},
with title the title of the products. Here eodag is configured to download products in this workspace directory.
[3]:
os.environ["EODAG__PEPS__DOWNLOAD__OUTPUTS_PREFIX"] = os.path.abspath(workspace)
The extract setting could be also defined here. It indicates whether products need to be automatically extracted from their archive or not. They are extracted by default, this setting is not going to be altered here. The search result is finally loaded with deserialize_and_register().
[5]:
from eodag import EODataAccessGateway
dag = EODataAccessGateway()
search_results = dag.deserialize_and_register("data/download_search_results.geojson")
print(f"This SearchResult stores {len(search_results)} {search_results[0].product_type} products.")
This SearchResult stores 10 S2_MSI_L1C products.
delete_archive is another setting that allows to remove the archive containing products after its extraction, or not. The deletion is activated by default.
Logging is set to see more about what eodag does when it downloads products.
[6]:
from eodag import setup_logging
setup_logging(2)
Progress bar#
eodag displays a progress bar every time it downloads products or quicklooks. It uses tqdm.auto to create a progress bar adapted to the context (Notebook, terminal).
Cutomize progress bar#
Progress bars can be customized, using the progress_callback parameter of the download methods. Create your own instance of ProgressCallback class, customize it to pass it later to download methods:
[7]:
from eodag.utils import ProgressCallback
with ProgressCallback(total=3, unit="carrots", unit_scale=False, desc="Eating carrots") as progress_callback:
progress_callback(1)
progress_callback(2)
Keep another progress bar opened, and customize it changing ProgressCallback attributes inherited from tqdm:
[8]:
another_bar = ProgressCallback(dynamic_ncols=False, ncols=300)
another_bar.colour = "purple"
[9]:
another_bar(1)
Mute progress bar#
Progress bars can be muted using setup_logging and 0 as verbosity level, or no_progress_bar parameter.
[10]:
with ProgressCallback(total=2) as progress_callback:
progress_callback.desc = "This will be displayed"
progress_callback.position = 0
progress_callback(1)
setup_logging(verbose=0)
with ProgressCallback() as progress_callback:
progress_callback.desc = "This will be hidden"
progress_callback.position = 1
progress_callback(1)
setup_logging(verbose=2, no_progress_bar=True)
with ProgressCallback() as progress_callback:
progress_callback.desc = "This will be hidden"
progress_callback.position = 2
progress_callback(1)
setup_logging(verbose=2)
with ProgressCallback() as progress_callback:
progress_callback.desc = "This will be also displayed"
progress_callback.position = 3
progress_callback(1)
with ProgressCallback(disable=True) as progress_callback:
progress_callback.desc = "This will be hidden"
progress_callback.position = 4
progress_callback(1)
Already downloaded product#
An EOProduct has a location attribute that stores either its remote location (before being downloaded) or its local location (after being downloaded). The download methods of eodag checks first wheter the product/quicklook to download has been already downloaded. If so, it just returns its path and does not try to download it again.
Download quicklooks#

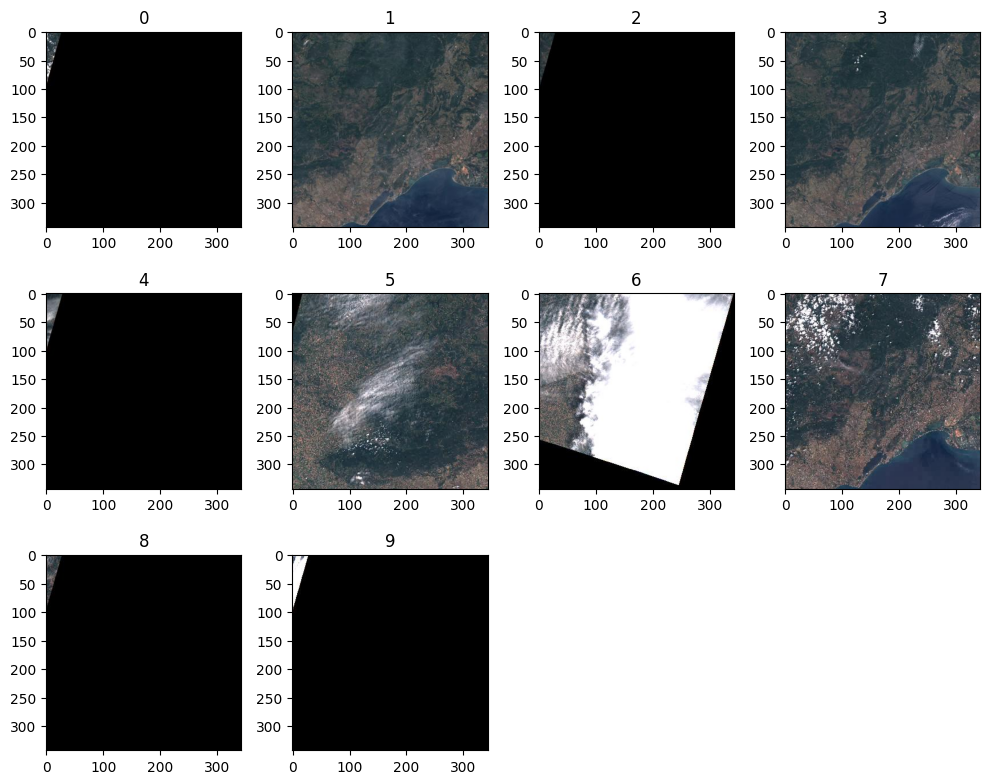

EO products usually offer a quicklook image, a low resolution by-product of the original data. An EOProduct has a get_quicklook() method that takes care of downloading the quicklook image and returns its path. It accepts a base_dir (optional) parameter to specify an output directory and a filename (optional) parameter to
specify an output filename. By default, eodag saves a quicklook with its ID as filename.
get_quicklook() returns the local absolute path to the image downloaded. This is useful to precess it afterwards. Here matplotlib is used here to display 4 quicklooks.
[11]:
import matplotlib.pyplot as plt
import matplotlib.image as mpimg
fig = plt.figure(figsize=(10, 8))
for i, product in enumerate(search_results, start=1):
# This line takes care of downloading the quicklook
quicklook_path = product.get_quicklook()
# Plot the quicklook
img = mpimg.imread(quicklook_path)
ax = fig.add_subplot(3, 4, i)
ax.set_title(i - 1)
plt.imshow(img)
plt.tight_layout()
2023-10-18 14:53:31,315 eodag.product [INFO ] Download recorded in /home/anesson/workspace/EODAG/dev/eodag/docs/notebooks/api_user_guide/eodag_workspace_download/quicklooks/S2B_MSIL1C_20201231T105349_N0500_R051_T31TCK_20230328T212259
2023-10-18 14:53:31,668 eodag.product [INFO ] Download recorded in /home/anesson/workspace/EODAG/dev/eodag/docs/notebooks/api_user_guide/eodag_workspace_download/quicklooks/S2B_MSIL1C_20201231T105349_N0500_R051_T31TCL_20230328T212259
2023-10-18 14:53:32,179 eodag.product [INFO ] Download recorded in /home/anesson/workspace/EODAG/dev/eodag/docs/notebooks/api_user_guide/eodag_workspace_download/quicklooks/S2A_MSIL1C_20201229T110451_N0500_R094_T31TCL_20230328T144935
2023-10-18 14:53:32,630 eodag.product [INFO ] Download recorded in /home/anesson/workspace/EODAG/dev/eodag/docs/notebooks/api_user_guide/eodag_workspace_download/quicklooks/S2A_MSIL1C_20201226T105451_N0500_R051_T31TCL_20230328T002707
2023-10-18 14:53:33,096 eodag.product [INFO ] Download recorded in /home/anesson/workspace/EODAG/dev/eodag/docs/notebooks/api_user_guide/eodag_workspace_download/quicklooks/S2A_MSIL1C_20201226T105451_N0500_R051_T31TCK_20230328T002707
2023-10-18 14:53:33,549 eodag.product [INFO ] Download recorded in /home/anesson/workspace/EODAG/dev/eodag/docs/notebooks/api_user_guide/eodag_workspace_download/quicklooks/S2B_MSIL1C_20201201T105419_N0209_R051_T31TCL_20201201T115506
2023-10-18 14:53:33,961 eodag.product [INFO ] Download recorded in /home/anesson/workspace/EODAG/dev/eodag/docs/notebooks/api_user_guide/eodag_workspace_download/quicklooks/S2B_MSIL1C_20201201T105419_N0209_R051_T31TCK_20201201T115506
2023-10-18 14:53:34,534 eodag.product [INFO ] Download recorded in /home/anesson/workspace/EODAG/dev/eodag/docs/notebooks/api_user_guide/eodag_workspace_download/quicklooks/S2B_MSIL1C_20201111T105259_N0209_R051_T31TCK_20201111T130651
2023-10-18 14:53:35,263 eodag.product [INFO ] Download recorded in /home/anesson/workspace/EODAG/dev/eodag/docs/notebooks/api_user_guide/eodag_workspace_download/quicklooks/S2B_MSIL1C_20201111T105259_N0209_R051_T31TCL_20201111T130651
2023-10-18 14:53:35,785 eodag.product [INFO ] Download recorded in /home/anesson/workspace/EODAG/dev/eodag/docs/notebooks/api_user_guide/eodag_workspace_download/quicklooks/S2B_MSIL1C_20200902T104629_N0209_R051_T31TCK_20200902T121149
Download EO products#
Dynamically configure some download options#
The 3 download methods introduced below accept the following optional kwargs that temporarily override the global configuration:
outputs_prefix(str): absolute path to a folder where the products should be savedextract(bool): whether to automatically extract or not the downloaded product archivedl_url_params(dict): additional parameters to pass over to the download url as an url parameterdelete_archive(bool): whether to delete the downloaded archives
Order OFFLINE products#
As introduced in the getting started guide an EO product may not be available for download immediately. If the product status is OFFLINE, the download methods will request an order of the product and, by default, retry to download it every 2 minutes during 20 minutes. These two durations can be set with the wait (in minutes) and timeout (in minutes) optional parameters of all the download methods.
The storage status of a product can be obtained from its storageStatus field. The status of an OFFLINE product is updated by eodag to STAGING when ordered and to ONLINE when found available.
[12]:
[p.properties["storageStatus"] for p in search_results]
[12]:
['ONLINE',
'ONLINE',
'ONLINE',
'ONLINE',
'ONLINE',
'OFFLINE',
'OFFLINE',
'OFFLINE',
'OFFLINE',
'OFFLINE']
A FilterProperty can be used to filter out OFFLINE products to avoid triggering any product order.
[13]:
online_search_results = search_results.filter_property(
storageStatus="ONLINE"
)
[p.properties["storageStatus"] for p in online_search_results]
2023-10-18 14:53:40,104 eodag.crunch.property [INFO ] Finished filtering products. 5 resulting products
[13]:
['ONLINE', 'ONLINE', 'ONLINE', 'ONLINE', 'ONLINE']
Download multiple products at once#
EODataAccessGateway offers a download_all() method that takes a SearchResult argument and will try to download each EOProduct it contains. It returns a list of absolute paths to the downloaded products. For the purpose of this user guide only 2 products will be downloaded.
[14]:
products_to_download = online_search_results[2:4]
paths = dag.download_all(products_to_download)
2023-10-18 14:53:40,408 eodag.core [INFO ] Downloading 2 products
2023-10-18 14:53:40,447 eodag.download.base [INFO ] Download url: https://peps.cnes.fr/resto/collections/S2ST/6f9f68b8-b278-55fb-8cb7-df0e983a5ce2/download
2023-10-18 14:57:22,213 eodag.download.base [INFO ] Extraction activated
2023-10-18 14:57:23,489 eodag.download.base [INFO ] Deleting archive S2A_MSIL1C_20201229T110451_N0500_R094_T31TCL_20230328T144935.zip
2023-10-18 14:57:23,560 eodag.product [INFO ] Remote location of the product is still available through its 'remote_location' property: https://peps.cnes.fr/resto/collections/S2ST/6f9f68b8-b278-55fb-8cb7-df0e983a5ce2/download
2023-10-18 14:57:23,575 eodag.download.base [INFO ] Download url: https://peps.cnes.fr/resto/collections/S2ST/d0cc77dd-d4bb-5b9c-8be6-e9e454ca5924/download
2023-10-18 15:04:57,850 eodag.download.base [INFO ] Extraction activated
2023-10-18 15:05:00,652 eodag.download.base [INFO ] Deleting archive S2A_MSIL1C_20201226T105451_N0500_R051_T31TCL_20230328T002707.zip
2023-10-18 15:05:00,781 eodag.product [INFO ] Remote location of the product is still available through its 'remote_location' property: https://peps.cnes.fr/resto/collections/S2ST/d0cc77dd-d4bb-5b9c-8be6-e9e454ca5924/download
[15]:
paths
[15]:
['/home/anesson/workspace/EODAG/dev/eodag/docs/notebooks/api_user_guide/eodag_workspace_download/S2A_MSIL1C_20201229T110451_N0500_R094_T31TCL_20230328T144935',
'/home/anesson/workspace/EODAG/dev/eodag/docs/notebooks/api_user_guide/eodag_workspace_download/S2A_MSIL1C_20201226T105451_N0500_R051_T31TCL_20230328T002707']
The products have been downloaded as archived files (Sentinel products are distributed in the SAFE format). The logs above and the command below show that eodag then took care of extracting them to their own directory and deleting them afterward.
[16]:
!ls {workspace}
quicklooks
S2A_MSIL1C_20201226T105451_N0500_R051_T31TCL_20230328T002707
S2A_MSIL1C_20201229T110451_N0500_R094_T31TCL_20230328T144935
[17]:
!ls {paths[0]}
AUX_DATA GRANULE INSPIRE.xml MTD_MSIL1C.xml
DATASTRIP HTML manifest.safe rep_info
eodag saves a file in the outputs_prefix folder that contains a hash list of the products downloaded. Before downloading products, this file is read and it is checked whether the products to download were already downloaded or not. If they were, their download is skipped.
[18]:
products_to_download = online_search_results[2:4]
dag.download_all(products_to_download)
2023-10-18 15:05:02,889 eodag.core [INFO ] Downloading 2 products
2023-10-18 15:05:02,942 eodag.download.base [INFO ] Product already present on this platform. Identifier: /home/anesson/workspace/EODAG/dev/eodag/docs/notebooks/api_user_guide/eodag_workspace_download/S2A_MSIL1C_20201229T110451_N0500_R094_T31TCL_20230328T144935
2023-10-18 15:05:02,943 eodag.product [INFO ] Remote location of the product is still available through its 'remote_location' property: https://peps.cnes.fr/resto/collections/S2ST/6f9f68b8-b278-55fb-8cb7-df0e983a5ce2/download
2023-10-18 15:05:02,987 eodag.download.base [INFO ] Product already present on this platform. Identifier: /home/anesson/workspace/EODAG/dev/eodag/docs/notebooks/api_user_guide/eodag_workspace_download/S2A_MSIL1C_20201226T105451_N0500_R051_T31TCL_20230328T002707
2023-10-18 15:05:02,988 eodag.product [INFO ] Remote location of the product is still available through its 'remote_location' property: https://peps.cnes.fr/resto/collections/S2ST/d0cc77dd-d4bb-5b9c-8be6-e9e454ca5924/download
[18]:
['/home/anesson/workspace/EODAG/dev/eodag/docs/notebooks/api_user_guide/eodag_workspace_download/S2A_MSIL1C_20201229T110451_N0500_R094_T31TCL_20230328T144935',
'/home/anesson/workspace/EODAG/dev/eodag/docs/notebooks/api_user_guide/eodag_workspace_download/S2A_MSIL1C_20201226T105451_N0500_R051_T31TCL_20230328T002707']
Download a single product#
EODataAccessGateway also offers a download() method that takes an EOProduct argument and will try to download it. It is a wrapper around the download() method that each EOProduct has. Its advantage over the latter is that, similarly to what does deserialize_and_register(), it adds the information required for a product to download itself if it was missing. It does so by extracting the product’s provider and getting the right authentication and download plugins. Both methods return the absolute path to the downloaded product.
Download an OFFLINE product#
This examples shows what logs eodag emits when it tries to download a product that is originally OFFLINE. It is set to retry downloading the product every 1 minute after ordering it, and to stop trying (skip it if download_all() is used) after 5 minutes.
[19]:
offline_product = search_results.filter_property(
storageStatus="OFFLINE"
)[1]
offline_product.properties["storageStatus"]
2023-10-18 15:05:03,154 eodag.crunch.property [INFO ] Finished filtering products. 5 resulting products
[19]:
'OFFLINE'
[20]:
path = dag.download(
offline_product,
wait=1,
timeout=10,
)
2023-10-18 15:05:03,330 eodag.download.base [INFO ] Download url: https://peps.cnes.fr/resto/collections/S2ST/2e5a5258-8b84-5a77-a04c-264429706c93/download
2023-10-18 15:11:08,011 eodag.download.base [INFO ] Extraction activated
2023-10-18 15:11:09,899 eodag.download.base [INFO ] Deleting archive S2B_MSIL1C_20201201T105419_N0209_R051_T31TCK_20201201T115506.zip
2023-10-18 15:11:10,005 eodag.product [INFO ] Remote location of the product is still available through its 'remote_location' property: https://peps.cnes.fr/resto/collections/S2ST/2e5a5258-8b84-5a77-a04c-264429706c93/download
[21]:
path
[21]:
'/home/anesson/workspace/EODAG/dev/eodag/docs/notebooks/api_user_guide/eodag_workspace_download/S2B_MSIL1C_20201201T105419_N0209_R051_T31TCK_20201201T115506'
Now the location attribute rightfully points to its local path.
[22]:
offline_product.location
[22]:
'file:///home/anesson/workspace/EODAG/dev/eodag/docs/notebooks/api_user_guide/eodag_workspace_download/S2B_MSIL1C_20201201T105419_N0209_R051_T31TCK_20201201T115506'
Download assets#
Searching on some providers (mainly STAC providers) returns products having an assets attribute listing single files that can be individually donwloaded.
[5]:
search_results, total_count = dag.search(
productType="S2_MSI_L2A",
provider="planetary_computer"
)
[6]:
# view assets keys
[*search_results[0].assets]
[6]:
['AOT',
'B01',
'B02',
'B03',
'B04',
'B05',
'B06',
'B07',
'B08',
'B09',
'B11',
'B12',
'B8A',
'SCL',
'WVP',
'visual',
'preview',
'safe-manifest',
'granule-metadata',
'inspire-metadata',
'product-metadata',
'datastrip-metadata',
'tilejson',
'rendered_preview']
[7]:
# view single asset content
search_results[0].assets["B05"]
[7]:
{'href': 'https://sentinel2l2a01.blob.core.windows.net/sentinel2-l2/04/V/DM/2023/11/30/S2B_MSIL2A_20231130T221859_N0509_R115_T04VDM_20231130T231119.SAFE/GRANULE/L2A_T04VDM_A035176_20231130T221857/IMG_DATA/R20m/T04VDM_20231130T221859_B05_20m.tif', 'proj:bbox': [399960.0, 6590220.0, 509760.0, 6700020.0], 'proj:shape': [5490, 5490], 'proj:transform': [20.0, 0.0, 399960.0, 0.0, -20.0, 6700020.0], 'gsd': 20.0, 'type': 'image/tiff; application=geotiff; profile=cloud-optimized', 'roles': ['data'], 'title': 'Band 5 - Vegetation red edge 1 - 20m', 'eo:bands': [{'name': 'B05', 'common_name': 'rededge', 'description': 'Band 5 - Vegetation red edge 1', 'center_wavelength': 0.704, 'full_width_half_max': 0.019}]}
Configure provider for download, if not already done
[8]:
dag.update_providers_config(f"""
planetary_computer:
auth:
credentials:
apikey: PLEASE_CHANGE_ME
download:
outputs_prefix: {os.path.abspath(workspace)}
""")
Download several assets using core download() method, allowing regex in asset parameter to identify assets to download
[9]:
path = dag.download(search_results[0], asset=r"B0[23]")
path
[9]:
'/home/sylvain/workspace/eodag/docs/notebooks/api_user_guide/eodag_workspace_download/S2B_MSIL2A_20231130T221859_R115_T04VDM_20231130T231119'
[10]:
! ls {path}
T04VDM_20231130T221859_B02_10m.tif T04VDM_20231130T221859_B03_10m.tif
Download a single asset using asset.download() method
[11]:
path = search_results[0].assets["B05"].download()
path
[11]:
'/home/sylvain/workspace/eodag/docs/notebooks/api_user_guide/eodag_workspace_download/S2B_MSIL2A_20231130T221859_R115_T04VDM_20231130T231119'
[12]:
! ls {path}
T04VDM_20231130T221859_B02_10m.tif T04VDM_20231130T221859_B05_20m.tif
T04VDM_20231130T221859_B03_10m.tif
